Features and Specifications

The Cooler Master Hyper 212 heatpipe traces its lineage back well over a decade, which might as well be considered prehistoric in the PC industry. Historically, it’s been the plucky go-to cooler beloved by  and  due to low cost and relatively good performance. Now, Cooler Master has made two Black Editions of the Hyper 212, fitted with either a FP120 Silencio or  120mm fan.

Both the stealth and RGB versions feel like direct descendants to the Hyper 212s of yesteryear, with each performing like they were designed to be focused on entry-level to mid-range quad-core gaming builds. However, if overclocking more than four  to the upper-end of the silicon stratosphere is on your agenda, you might consider alternatives as this pair of Hyper 212s lacks at wrangling thermal loads on HEDT (high-end desktop) . This is no real surprise, though, as the Hyper 212 has always been a heatpipe cooler for the masses.

Swipe to scroll horizontally

Cooler Master Hyper 212 RGB Black Edition Specifications
Height 6.25 inches / 158.8mm
Width 4.93 inches / 125.5mm
Depth 2 inches / 50.8mm (3.13 inches / 79.5mm with fans)
Base Height 1.49 inches / 37.8mm
Assy. Offset 0 inches (centered) 1.1 inch / 27.94mm (with fans)
Cooling Fans 1x 120 x 25mm RGB
Connectors 1x 4-pin PWM 1x RGB
Weight 1.54 pounds / 700g
Intel Sockets 115x, 1366, 2011x, 2066
AMD Sockets FM2(+), FM1, AM2(+), AM3(+), AM4
Warranty 2 years
Price $39.99

As expected, the included standard fare of both versions of the Hyper 212 Black Edition are nearly identical, save for the RGB control integration in the Hyper 212 RGB Black Edition that has become rather standard for most Cooler Master products featuring 4-pin RGB functionality. Both the Silencio and RGB ship with an additional fan bracket to allow the cooler to operate in push/pull configuration if desired.

Swipe to scroll horizontally

Cooler Master Hyper 212 Black Edition (Silencio) Specifications
Height 6.25 inches / 158.8mm
Width 4.93 inches / 125.5mm
Depth 2 inches / 50.8mm (3.13 inches / 79.5mm with fans)
Base Height 1.49 inches / 37.8mm
Assy. Offset 0 inches (centered)1.1 inch / 27.94mm (with fans)
Cooling Fans 1x 120x25mm
Connectors 1x 4-pin PWM
Weight 1.44 pounds / 565g
Intel Sockets 115x, 1366, 2011x, 2066
AMD Sockets FM2(+), FM1, AM2(+), AM3(+), AM4
Warranty 2 years
Price $35

Both coolers support nearly every current Intel and AMD desktop processor socket except for Threadripper and offer a two-year warranty.

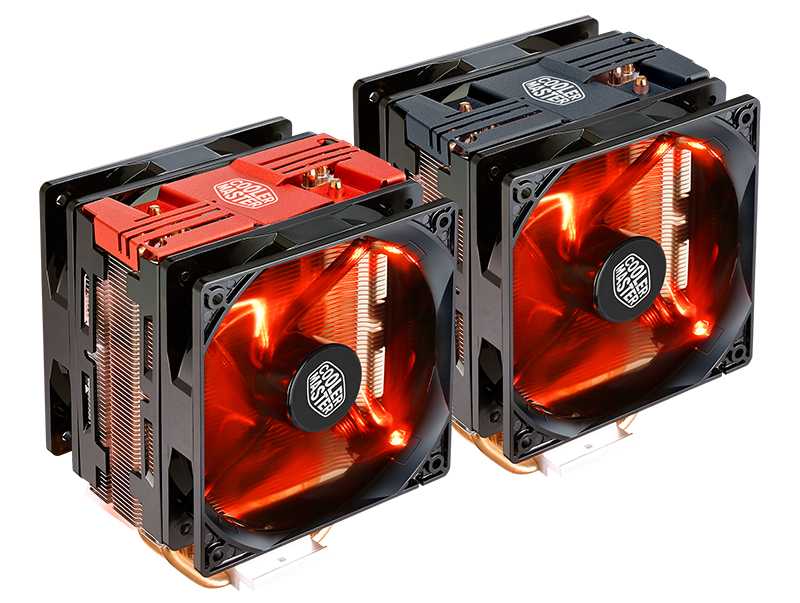

Like all Hyper 212 models, the current Black Edition coolers feature a direct-contact, quad-heatpipe tower design with minimal flair. The heatsink base and heatpipes themselves feature a handsome, ‘dark chrome’ plating that offers reduced, reflective gleam, while still providing a touch of dark shimmer.

Both the 5-blade Silencio and 9-blade RGB fans have a rather conservative design considering some of the current exotic fan and lighting trends. The 9-blade SF120R RGB fan sports narrow, elongated blades, while the 5-blade FP120 features wide, sweeping blades.

Make a note of that blade count and shape, as this will make for an interesting comparison a bit later.

The cooling tower fins of the new Hyper 212s utilize more of the same dark chrome plating that plays well into the overall Black Edition theme, especially the non-RGB model. Each cooling tower is topped with a brushed aluminum top plate featuring the Cooler Master logo and caps to conceal the heatpipe ends. The aggressively finned mounting block also secures the mounting hardware via a machine screw through the mounting plate tabs on either side of the base.

Cooler installation is relatively simple. The fan is decoupled from the cooling tower and then simply snapped into place once the Hyper 212 is secured. Both the RGB Black and Silencio models use a standard 4-pin  header. The RGB version can use the included -powered lighting controller or be integrated with the RGB controls of a certified compatible  from Asus, ASRock, Gigabyte or MSI.

MORE:

MORE:

MORE:

Cooler Master Hyper 212 RGB Black

Cooler Master Hyper 212 Black Silencio
